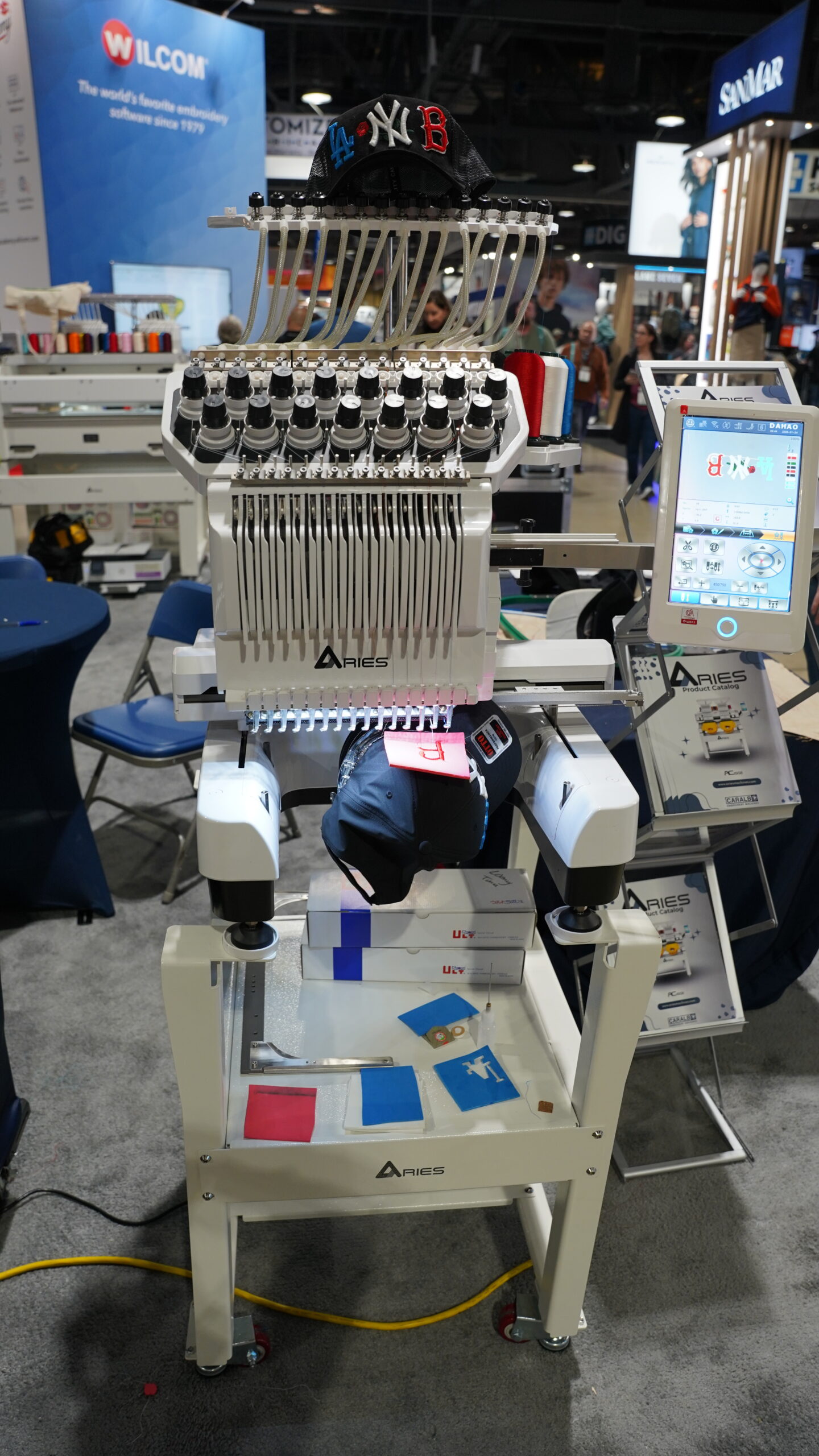

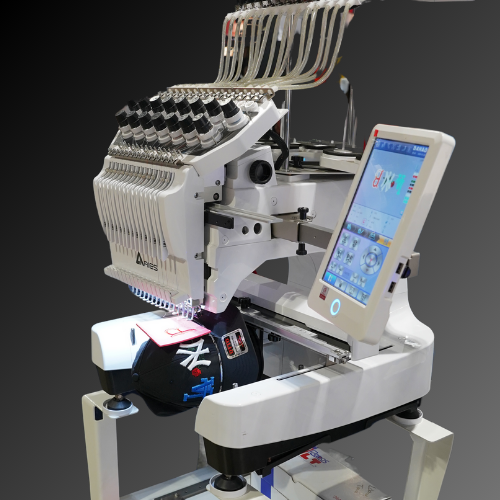

Aries BF-1501 Professional 15-Needle Compact Embroidery Machine
Description
The Aries BF-1501 Compact (often just referred to as BF-1501) is a professional industrial embroidery machine built for high-efficiency textile decoration. It comes with a 15 needle (color) head and a user-friendly touchscreen interface, allowing you to produce complex multicolor designs quickly and accurately. It’s designed for use in Inhouse workshops and small embroidery businesses thanks to its reliable performance and small construction.
-
Multiple needles (15) for fast multicolor work.
-
Touchscreen LCD for easy control and design input.
-
High speed and precision, ideal for caps, shirts, jackets, uniforms, and promotional products.
-
Built for industrial use, robust and reliable under heavy production loads.
Features
- 15 needles & 15 color capability
- Large embroidery field (~16 × 18 inches)

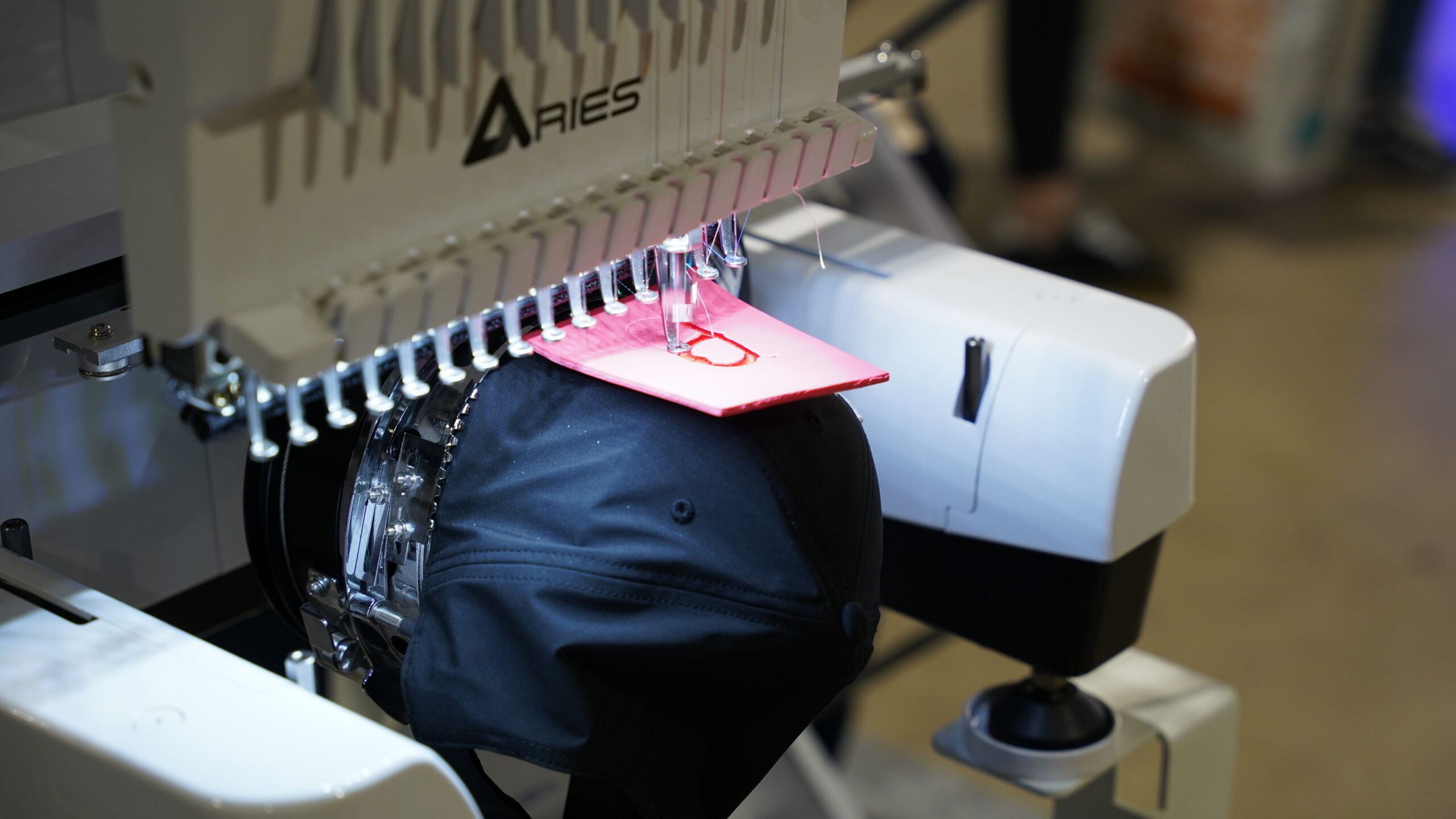

- Cap embroidery support
- Industrial motor with adjustable speed
- Automatic color changes, thread trimming & break detection
- Large internal memory
Additional Features
Technical Specs
| Specification | Details |
|---|---|
| Model | ARIES BF-1501 Compact |
| Machine Type | Computerized Embroidery Machine |
| Number of Heads | 1 |
| Needles per Head | 15 |
| Maximum Speed | ~1,000 stitches per minute (SPM) |
| Maximum Embroidery Area | ~16 in × 18 in |
| Cap Embroidery System | 270° wide-angle cap system |
| Embroidery Modes | Flat, Cap, Garment |
| Control Panel | Full-color LCD touch screen |
| Display Size | Approx. 7 in – 10.4 in |
| Design Input | USB |
| Memory Capacity | Supports millions of stitches |
| Drive System | High-torque servo motors |
| Thread Trimming | Automatic |
| Thread Break Detection | Yes |
| Emergency Stop | Yes |
| Power Supply | AC 100–240 V |
| Frequency | 50 / 60 Hz |
| Machine Width | ~28–30 in |
| Machine Depth | ~22–24 in |
| Machine Height | ~30–32 in |
| Net Weight | ~110–130 lb |
