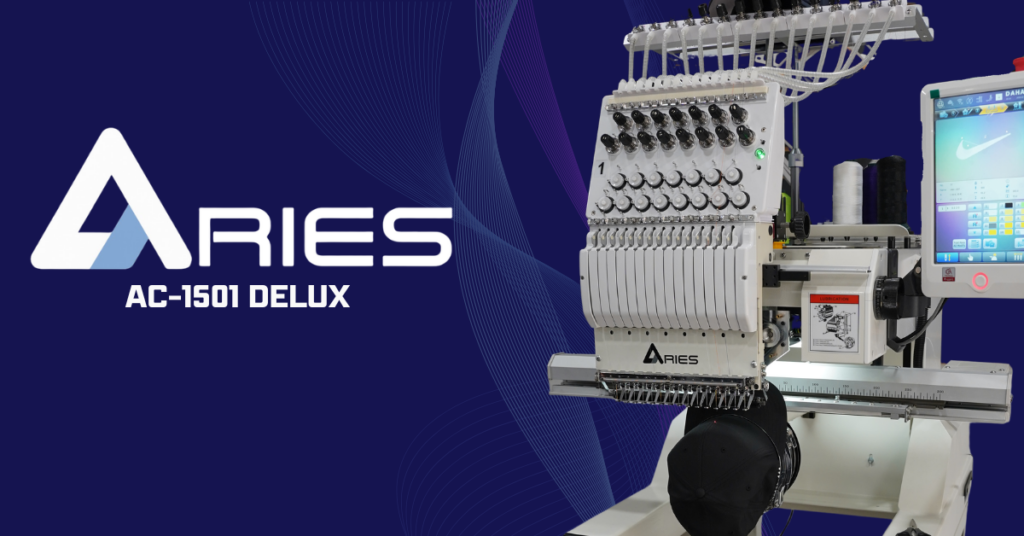

Aries AF-1501 Delux
Industrial 15-Needle Embroidery Machine
Description
Professional Power for Growing Embroidery Businesses
The Aries AC-1501 Delux is a 15-needle, single-head commercial embroidery machine built for real production. It delivers reliable performance and professional stitch quality across a wide range of garments.
With 15 needles, you can load multiple thread colors at once, reducing manual changes and speeding up workflow. Running up to 1,200 stitches per minute, it handles both custom jobs and steady production with consistent, clean results.
It supports flat, cap, and tubular embroidery, making it versatile for hats, apparel, bags, and more. The user-friendly touchscreen simplifies design loading and job control.
Built with industrial-grade components, the AC-1501 Delux is designed for daily use—making it a strong investment for businesses ready to start or scale.
Features
- 15 needles & 15 color capability
- Large embroidery field (16 × 18 inches)
- Cap embroidery support
- Industrial motor with adjustable speed
- Automatic color changes, thread trimming & break detection
- Large internal memory
Additional Features
Technical Specs
| Specification | Details |
|---|---|
| Model | ARIES AC-1501 Delux |
| Machine Type | Industrial Embroidery Machine |
| Number of Heads | 1 |
| Needles per Head | 15 |
| Maximum Speed | ~1,200 stitches per minute (SPM) |
| Maximum Embroidery Area | 16 in × 18 in |
| Cap Embroidery System | 270° wide-angle cap system |
| Embroidery Modes | Flat, Cap, Garment |
| Control Panel | Full-color LCD touch screen |
| Display Size | Approx. 7 in – 10.4 in |
| Design Input | USB |
| Memory Capacity | Supports millions of stitches |
| Drive System | High-torque servo motors |
| Thread Trimming | Automatic |
| Thread Break Detection | Yes |
| Emergency Stop | Yes |
| Power Supply | AC 100–240 V |
| Frequency | 50 / 60 Hz |
| Machine Width | ~28–30 in |
| Machine Depth | ~22–24 in |
| Machine Height | ~30–32 in |
| Net Weight | ~110–130 lb |
